Product Overview

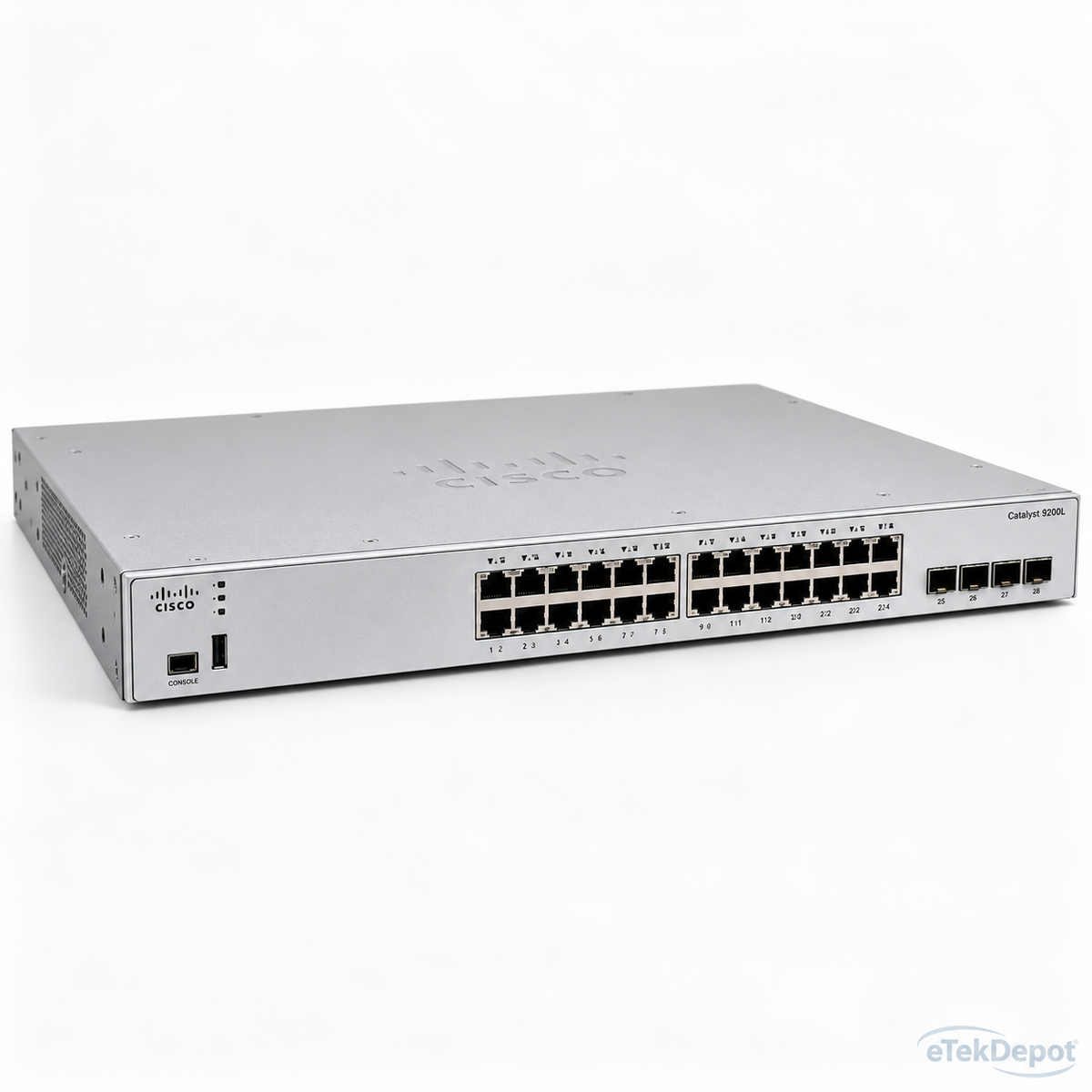

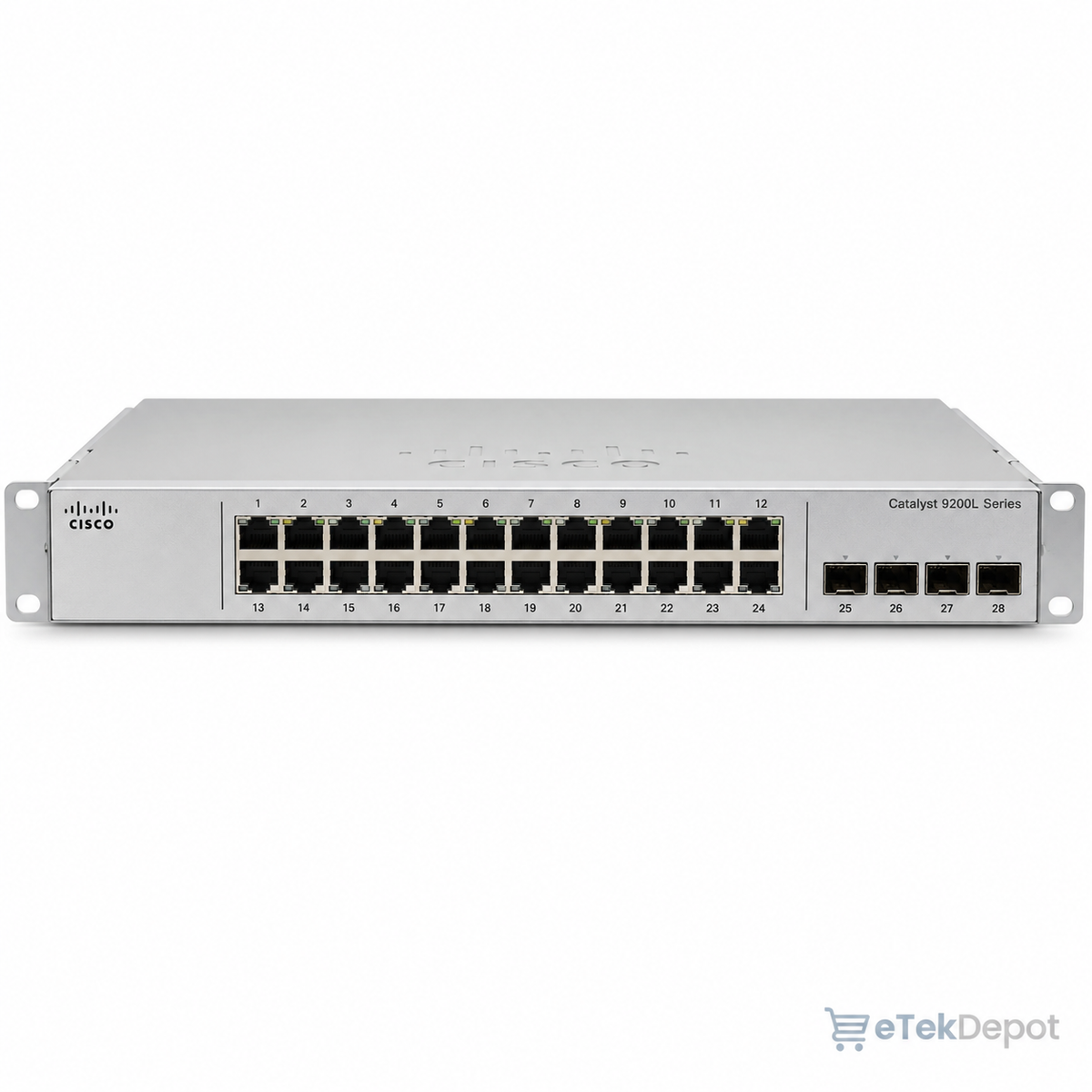

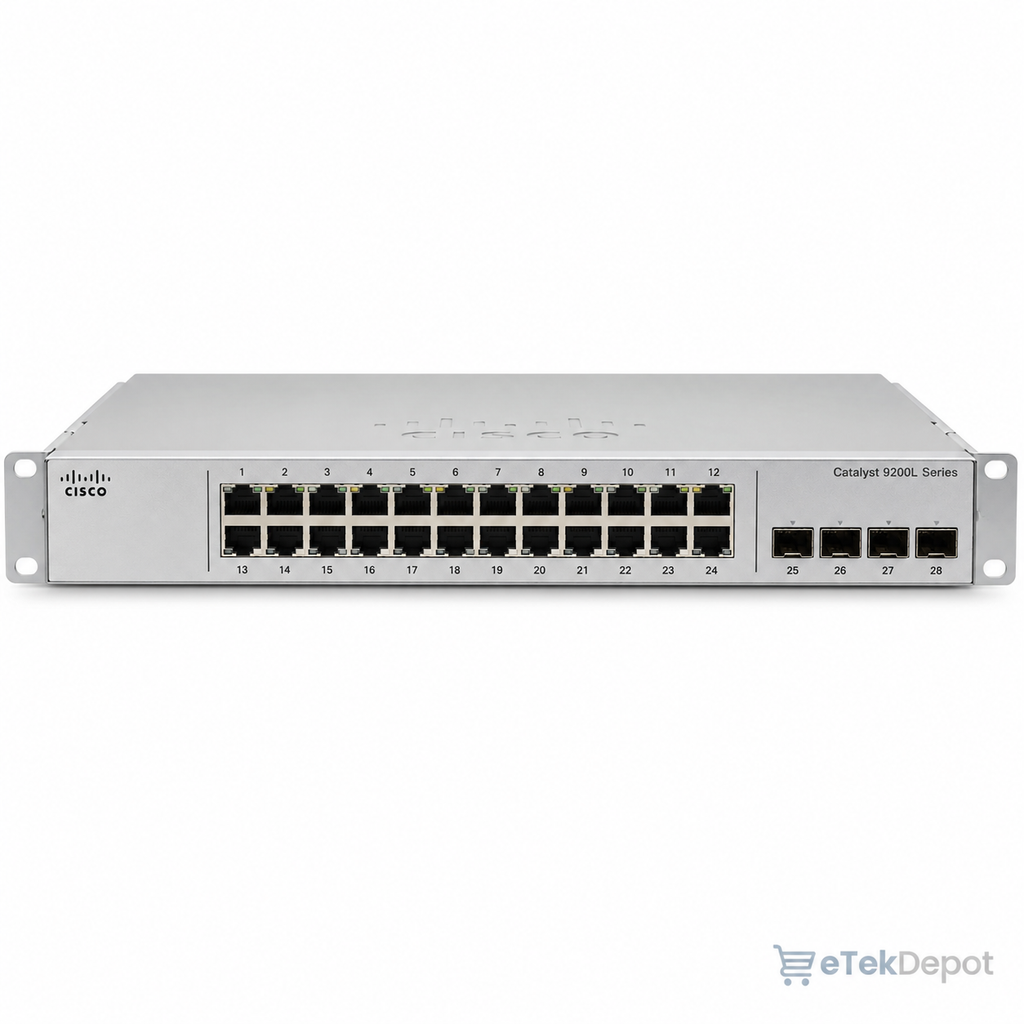

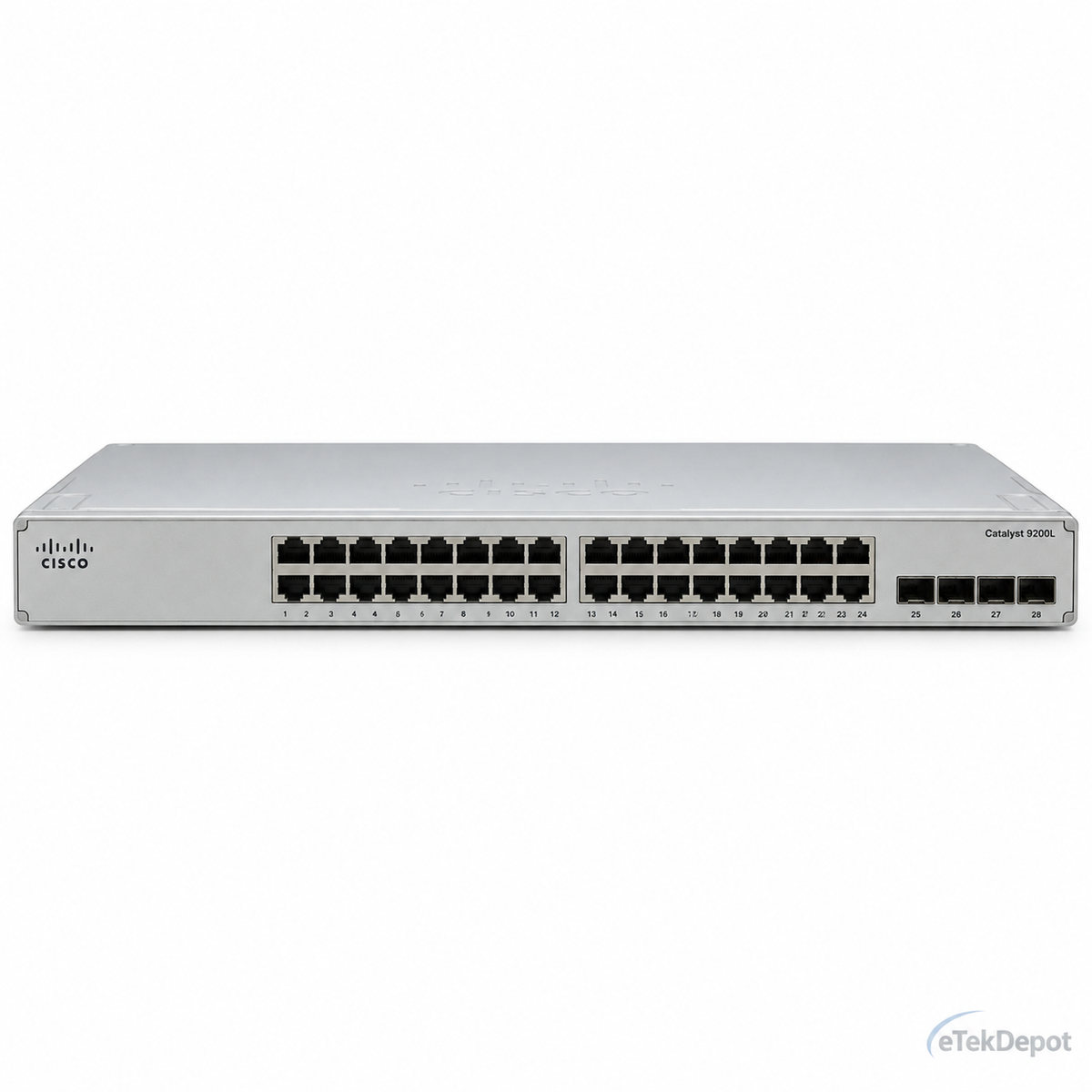

The Cisco Catalyst C9200L-24T-4G-E is an enterprise-class managed access switch featuring 24 Gigabit Ethernet data ports and four fixed 1G SFP uplinks. It includes the Network Essentials software tier and supports StackWise-80 stacking for scalable branch, campus and business network deployments. This is a data-only model and does not provide PoE.

Key Performance Features

• 24 × 10/100/1000BASE-T Ethernet data ports
• 4 × fixed 1 Gigabit SFP uplinks
• Network Essentials software tier
• 56 Gbps standalone switching capacity
• 41.67 Mpps forwarding rate
• StackWise-80 support
• Up to 80 Gbps stacking bandwidth
• Enterprise Layer 2/Layer 3 switching capabilities
• Rack-mountable 1U design
• Dual field-replaceable power-supply slots
• Data-only configuration — no PoE

Cisco documents the 56 Gbps switching capacity and 41.67 Mpps forwarding performance for this model.

Technical Specifications

Compatibility

Designed for enterprise Ethernet access-layer deployments using standard copper Gigabit Ethernet connections and supported 1G SFP uplink modules.

StackWise-80 stacking is supported with compatible Catalyst 9200L hardware and the appropriate separately purchased stacking components.

Important Compatibility Notice

This is the C9200L-24T-4G-E data-only version. It does NOT provide PoE/PoE+.

The four fixed uplink interfaces are 1G SFP, not 10G SFP+. Buyers requiring 10G fixed uplinks should select an appropriate 4X configuration instead. Cisco identifies the -E configuration as Network Essentials.

Cisco software, subscriptions, support contracts and entitlement requirements should be confirmed for the customer's intended deployment.

Required Accessories

Compatible SFP transceivers, stacking components and other deployment-specific accessories are sold separately unless specifically included with the ordered configuration.

Miscellaneous

Cisco positions the Catalyst 9200 family for enterprise access deployments. The C9200L-24T-4G platform supports up to 136 Gbps switching capacity and 101 Mpps forwarding performance when configured with supported stacking.

Package Contents

New Cisco C9200L-24T-4G-E factory configuration and standard manufacturer-supplied components.

NOT Included

• SFP transceivers
• StackWise stacking kit
• Additional optional power supply
• PoE capability
• Optional support/service contracts unless separately purchased
